J-Bolt Post Hinge - Hinge Bolts Thru the Post Includes Nuts - J-Bolt Hinge has 5/8" Male Pin - Fence Bolt Though Post Hinge

✔J-Bolt Hinge is designed for bolt through applications
✔J-Bolt Hinge works with 5/8" Gate Frame hinges that accommodate a 5/8" pin opening
✔J-Bolt thru post hinges are easily adjusted even after the gate is installed
✔Check usable thread length prior to purchase

Hardware: Nuts For Gate Hinge Are Included - Washers are NOT Included.

J-Bolt fence post hinge installs easily; drill 3/4" hole through post, install one nut on hinge side. Slide J-bolt post hinge through hole and install second nut on opposite side of post. J-Bolt thru post hinges are easily adjusted even after the gate is installed. Loosen the nuts and turning nuts in or out for proper gate line up

Check post thickness - Usable Length is noted for each J-Bolt here ----
6" length - (~4.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"

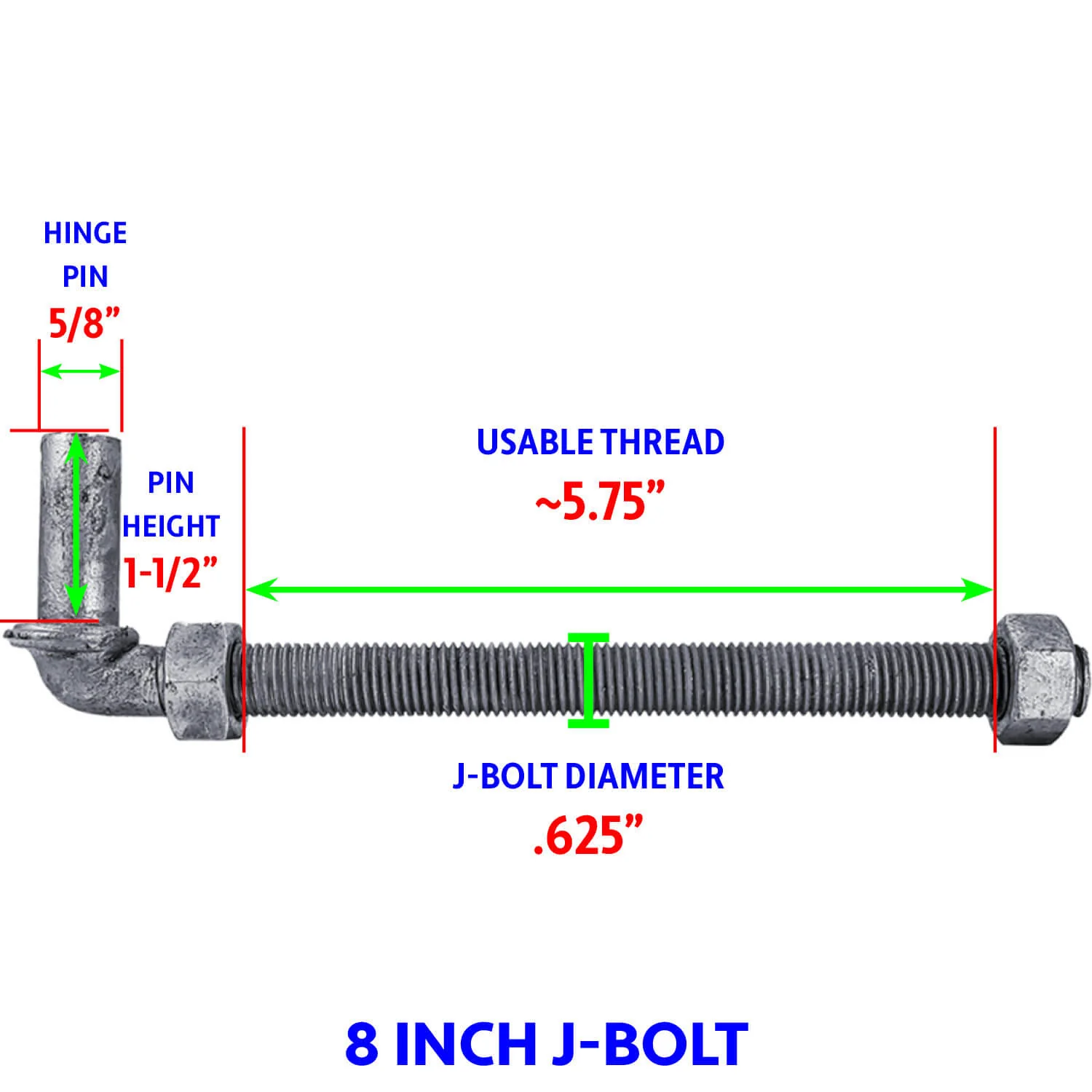

8" Length (~5.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -
10" length - (~8.25" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5" -
12" length - (~9.75" usable thread) - .625 diameter - 5/8" hinge pin - pin height ~1.5"-


Installation Instructions  Available Here

Size/Style	Pin Size	Galvanized Steel
4-1/2 Inch Lag Screw -	5/8 Inch	Yes
6 Inch Lag Screw -	5/8 Inch	Yes
6 Inch J-Bolt -	5/8 Inch	Yes
8 Inch J-Bolt -	5/8 Inch	Yes
10 Inch J-Bolt -	5/8 Inch	Yes
12 Inch J-Bolt	5/8 Inch	Yes
Wall Mount Flat Back	5/8 Inch	Yes
Wood Pin Hinge	5/8 Inch	Yes
