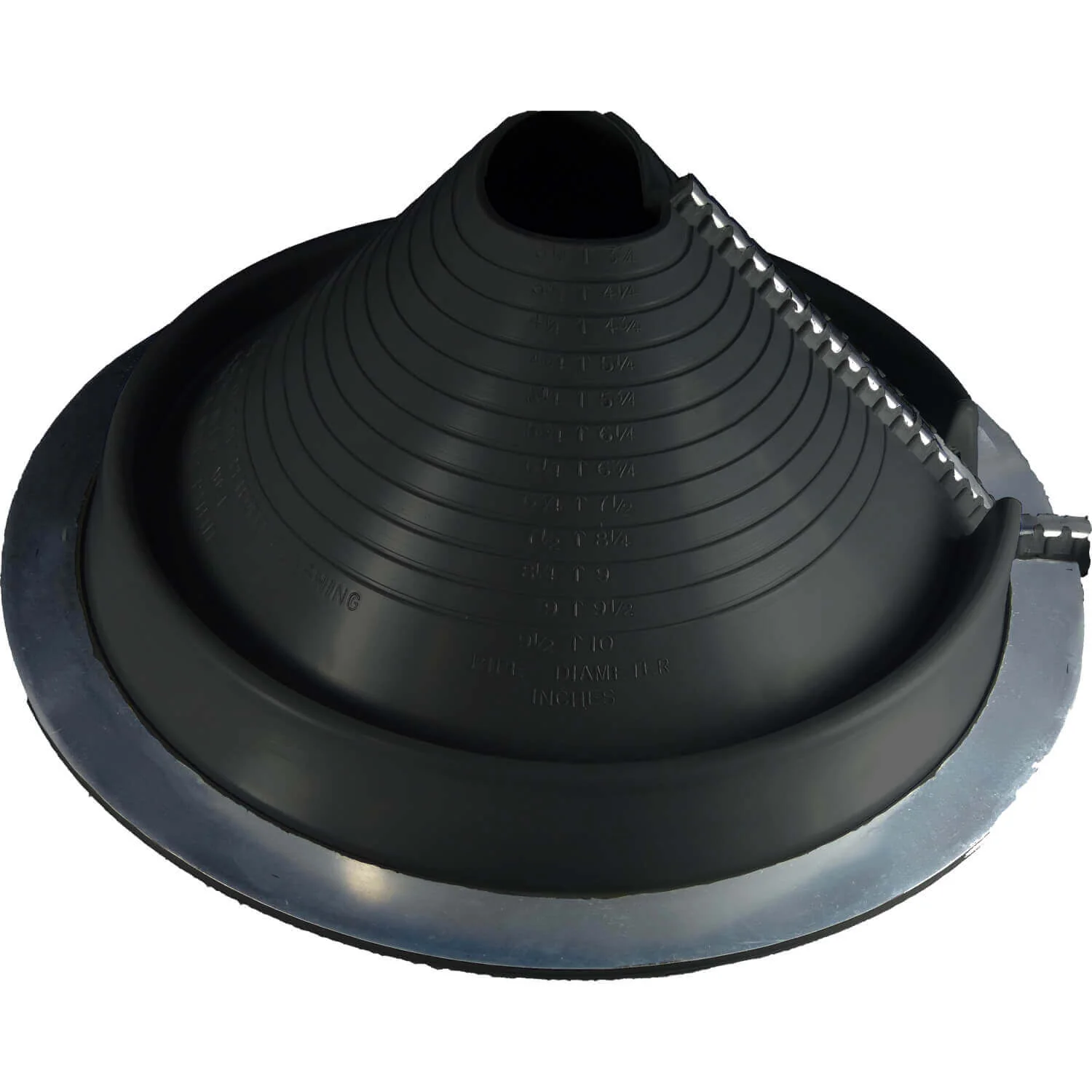

Retrofit Flexible Pipe Flashing Dektite: Roof Jack -Pipe Boot - Pipe Flashing
Retrofit Flexible Pipe Flashing Dektite: Roof Jack -Pipe Boot - Pipe Flashing
For Pipe Dimensions and Temperature Range by Product Number See Chart Below.
✔Retrofit Pipe Flashing in Gray and Black EPDM and Red Silicone High Temperature Styles
✔For Where the Height of Pipe is Difficult to Reach or Existing Obstruction Blocks Top of Pipe;
✔Flexible Base (Aluminum Collar) Seals Against Uneven Metal Roofing
✔Customize Pipe Boot Size on the Job Site With Shears or Heavy Scissors
✔Flashing Can Be Cut Along the Seam and Resealed With Provided Clips
✔Fasten Aluminum Collar To Metal Roof With Metal Roofing Screws Every 1-1/2"
✔If Trimmed and Installed Correctly, Pipe Flashing Will Not Break or Crack
✔Reduces Building Maintenance Due To The Long Life of the Dektite Product
✔Use for Stove Pipes, Chimneys, Plumbing, Heating, Air Conditioning, Electrical, and Exhaust Vents
✔20 Year Manufacturer's Warranty Against Manufacturing Defects
Recommended Temperature Ranges:

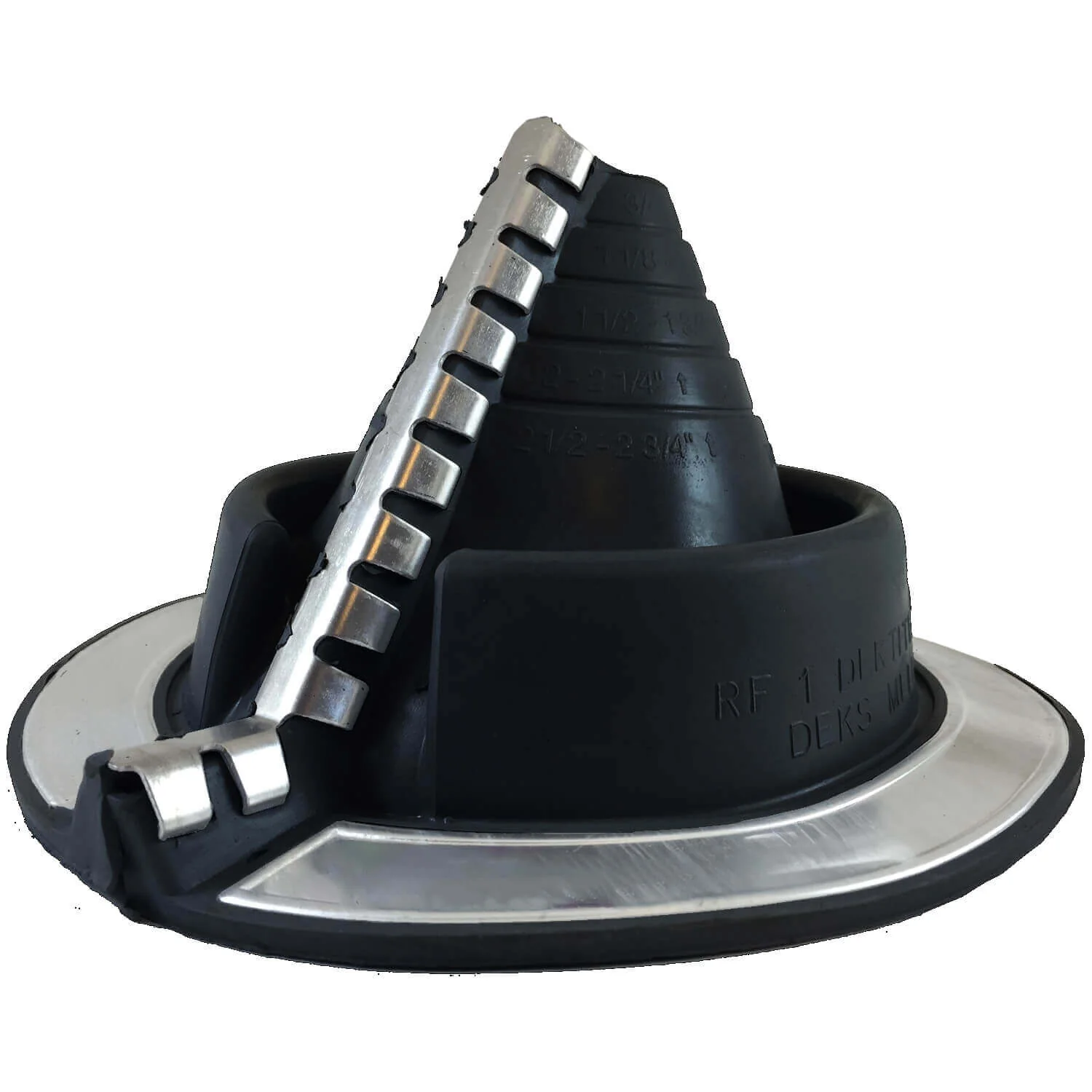

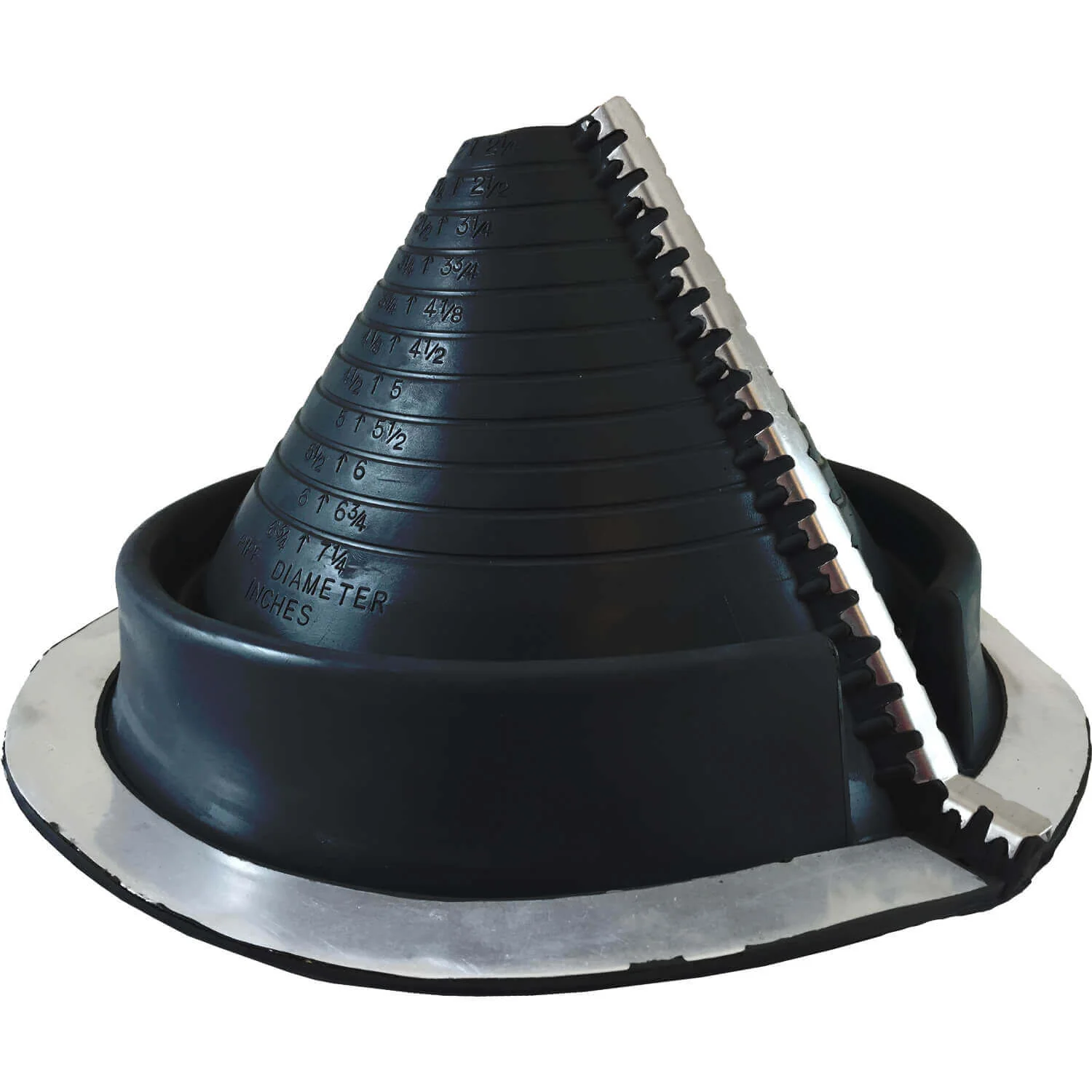

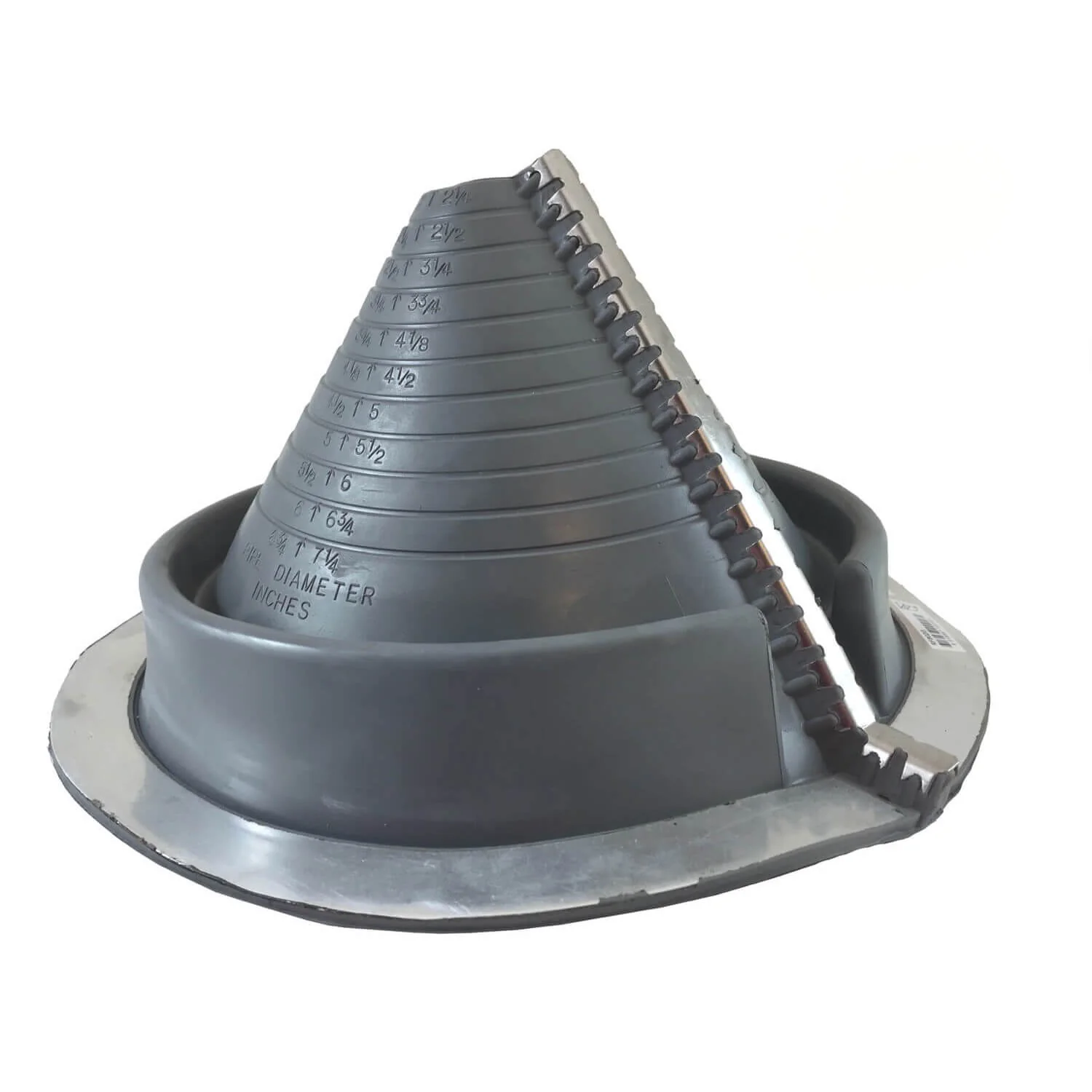

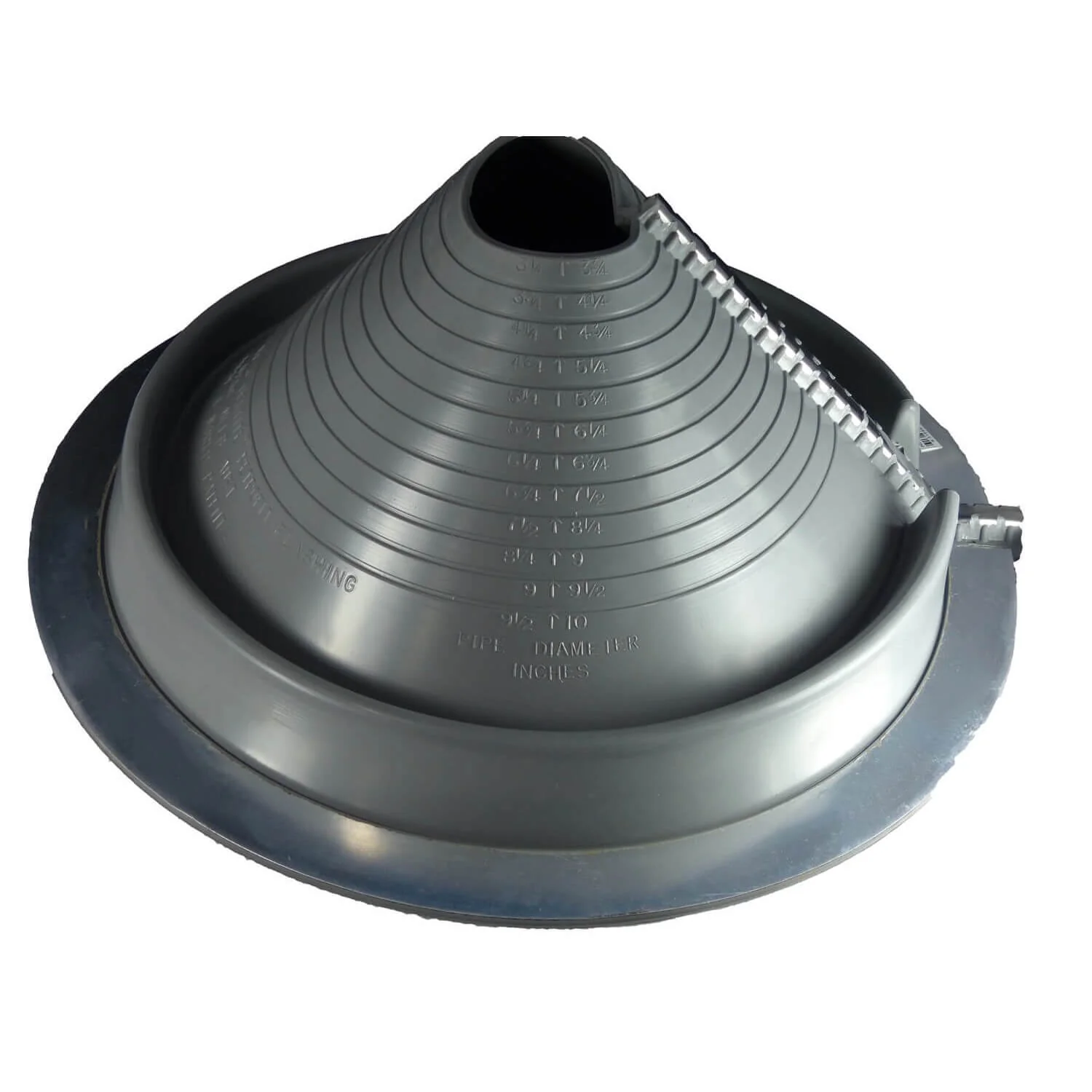

Black and Gray Colored Pipe Flashings for Continuous Service Temperature Ranges of -58F to 239 F (EPDM)

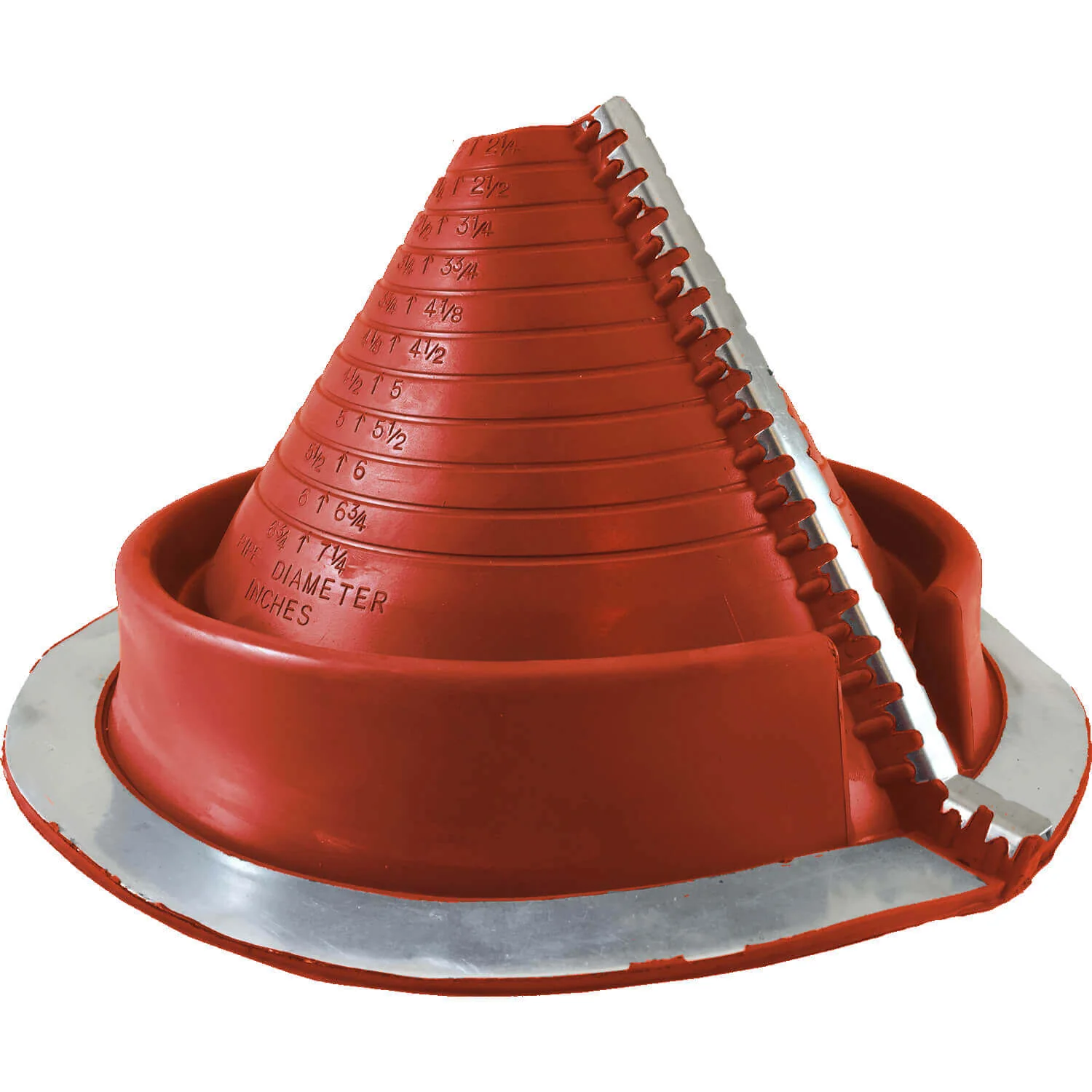

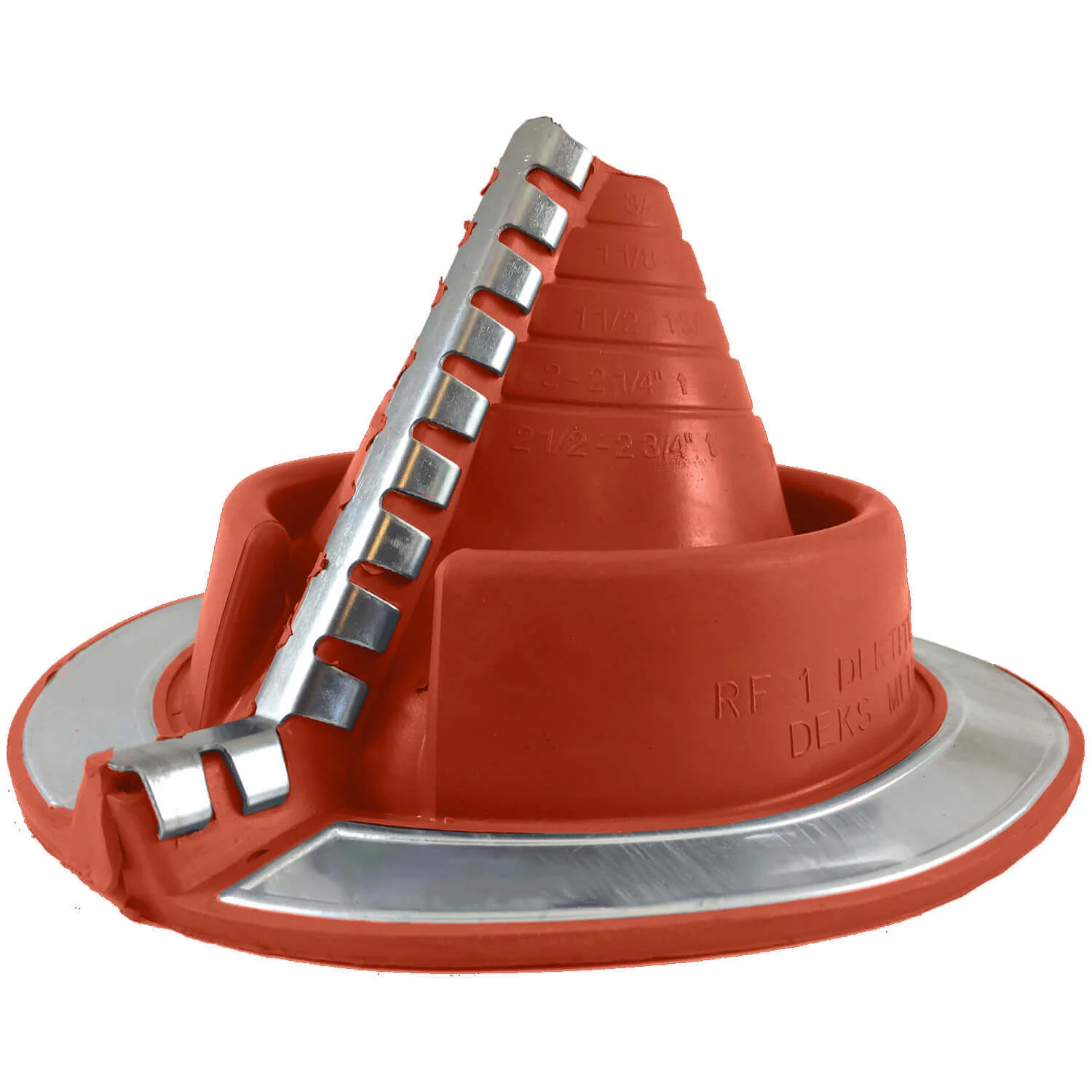

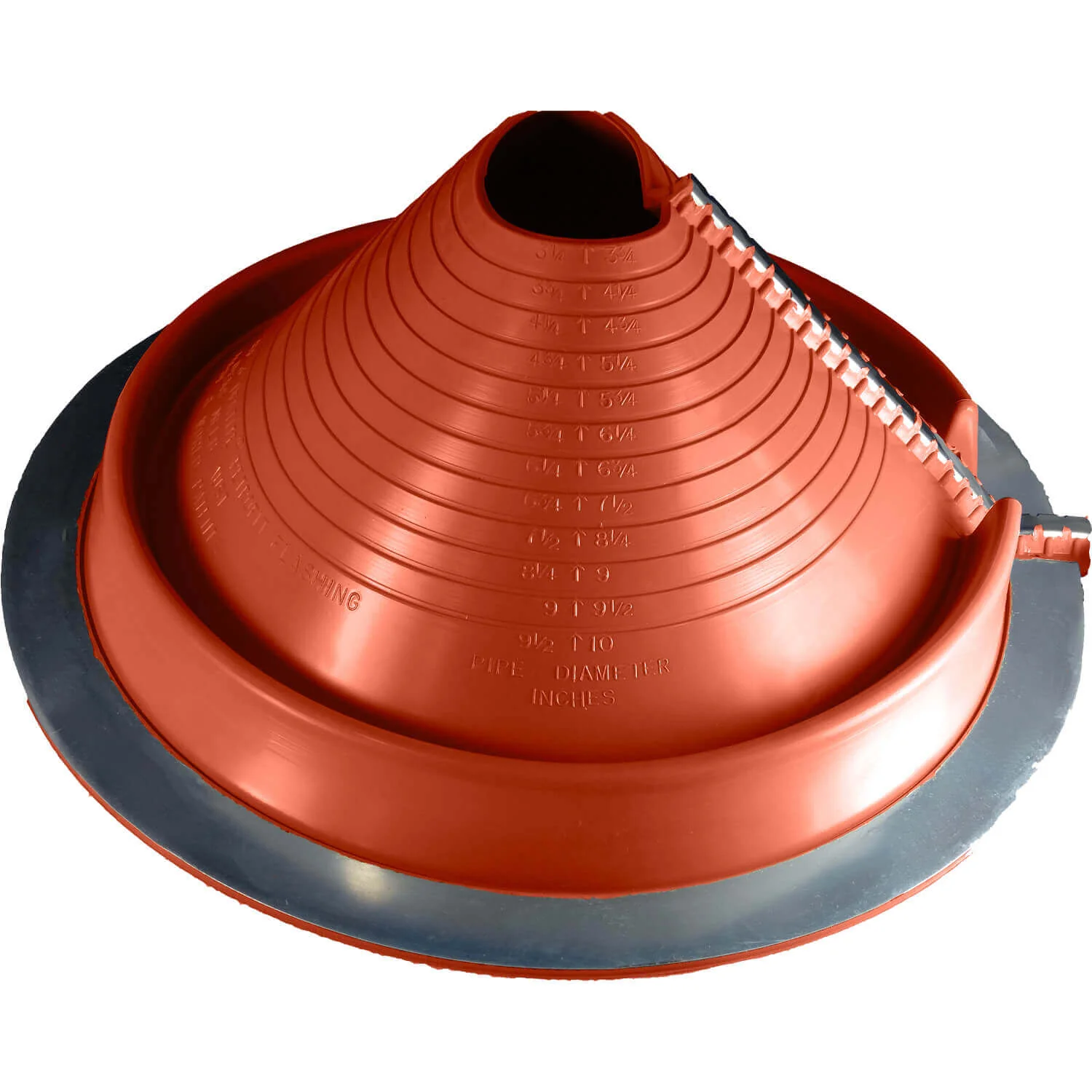

Red Silicone Pipe Flashing is a High Temperature Flashing Rated with Continuous Service Temperature Ranges of -58F to 392F Red Silicone
Do Not Exceed Manufacturers Recommended Temperatures - Product Damage Can Occur- Reference Chart Below for Temperature Ratings for Each Product
Works with Metal Roof Pitches up to 10/12 (0 to 40 degrees)
On a Roof with a 10/12 to 12/12 Pitch (40 Degrees) Dektite Recommends You Use a Square Base Pipe Flashing Installed With The Base Tip Pointed Towards Roof Top. When Used With Deep Ribbed Profile Roofing Panels With 1-1/2" Deep Corrugation Or More, Consider Using Next Size Up That Will Accommodate The Same Diameter Pipe
50 Count #10x1-1/2" Metal Roofing Screws for Dektite Installation Available Here
Installation Instructions - Available Here
| Product Number | Fits Outside Diameter Pipe | Base Size Diameter | Temperature Range | Flashing Material |
|---|---|---|---|---|

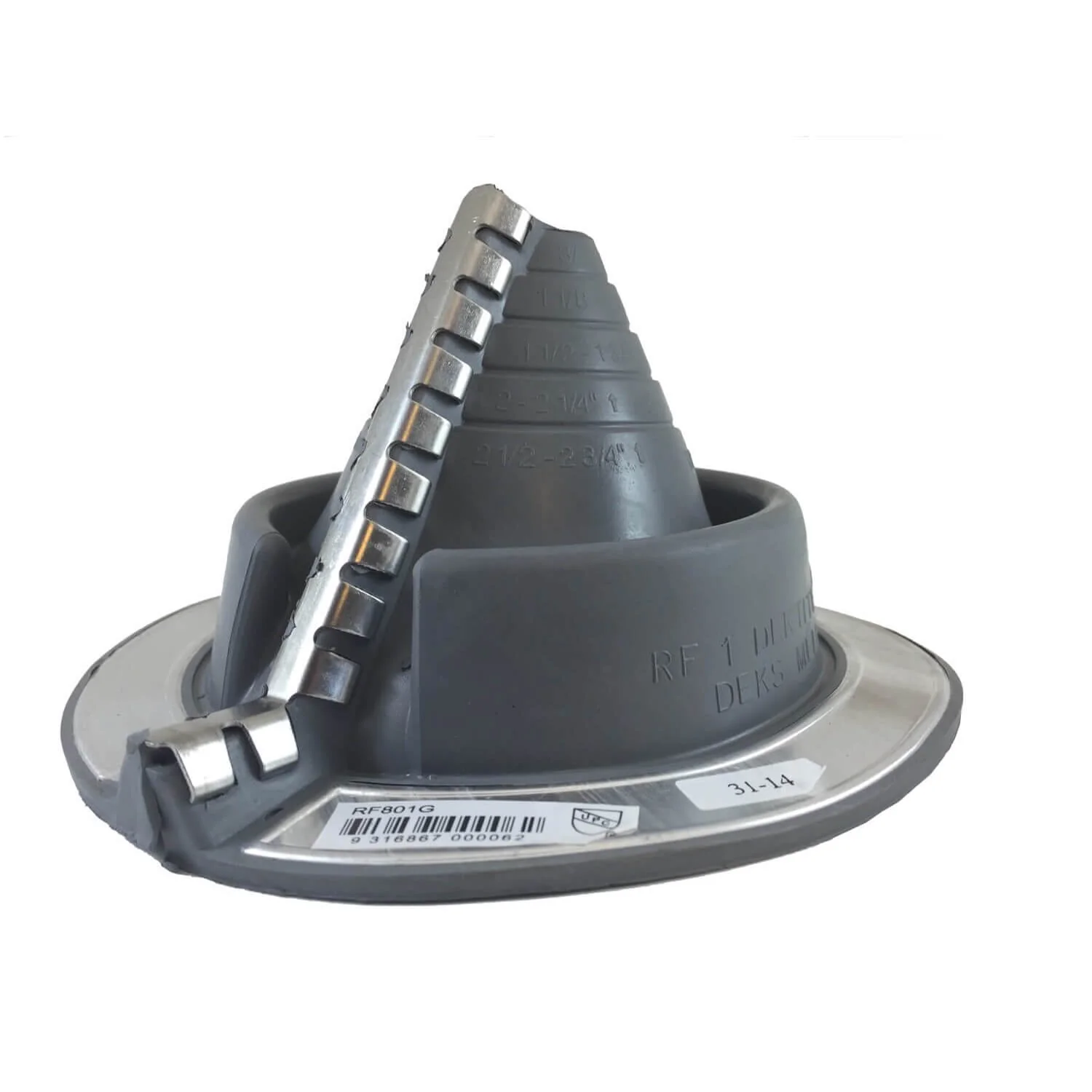

| RF801G | 3/4" to 2-3/4" | 6-1/3" | -58F to 239F | EPDM |
| RF802G | 2" to 7-1/2" | 10-3/4" | -58F to 239F | EPDM |
| RF803G | 3-1/4" to 10" | 14-1/2" | -58F to 239F | EPDM |
| RF801B - Black | 3/4" to 2-3/4" | 6-1/3" | -58F to 239F | EPDM |
| RF802B - Black | 2" to 7-1/2" | 10-3/4" | -58F to 239F | EPDM |
| RF803B - Black | 3-1/4" to 10" | 14-1/2" | -58F to 239F | EPDM |
| RF901RE - Red | 3/4" to 2-3/4" | 6-1/3" | -58F to 392F | Silicone |
| RF902RE- Red | 2" to 7-1/2" | 10-3/4" | -58F to 392F | Silicone |
| RF903RE- Red | 3-1/4" to 10" | 14-1/2 | -58F to 392F | Silicone |
