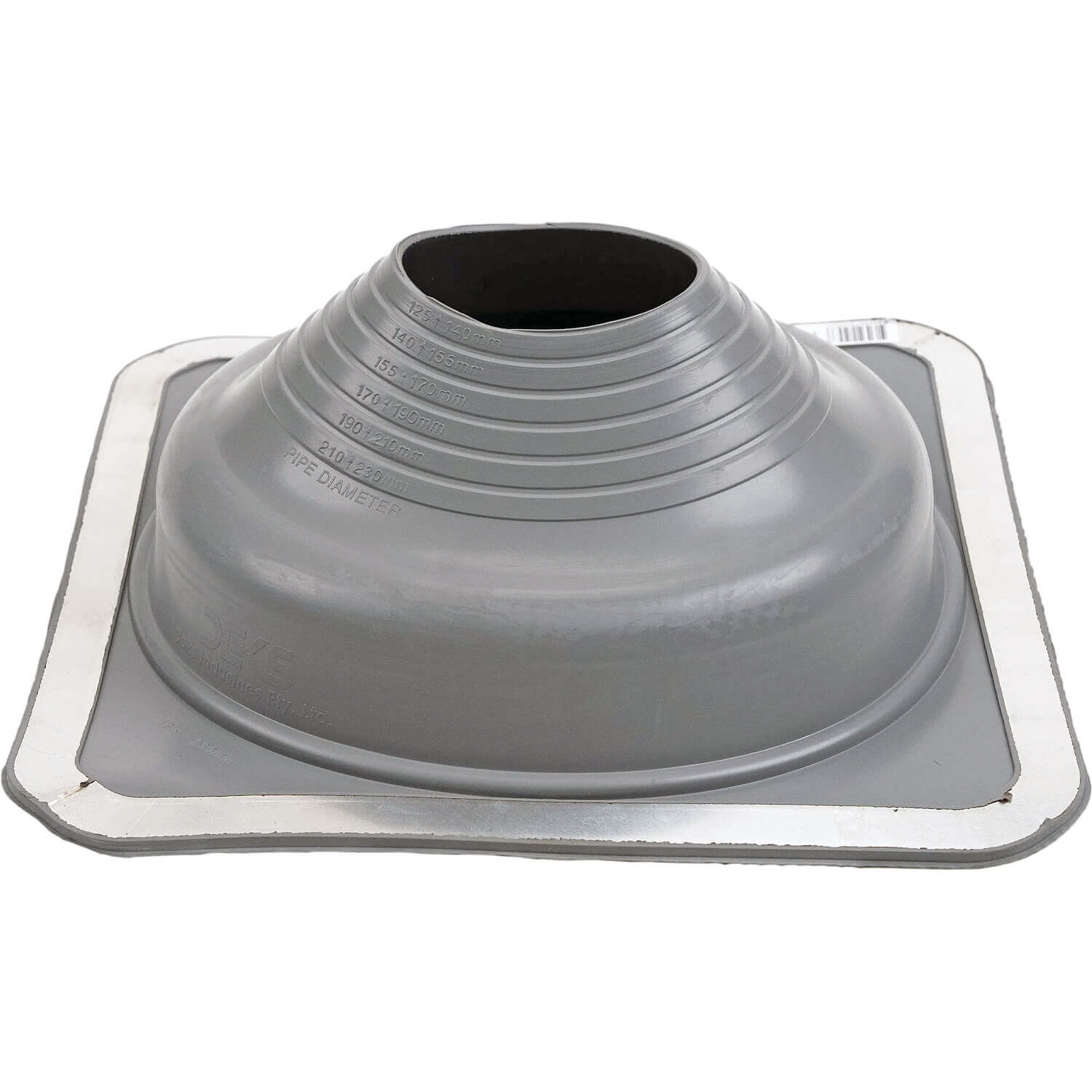

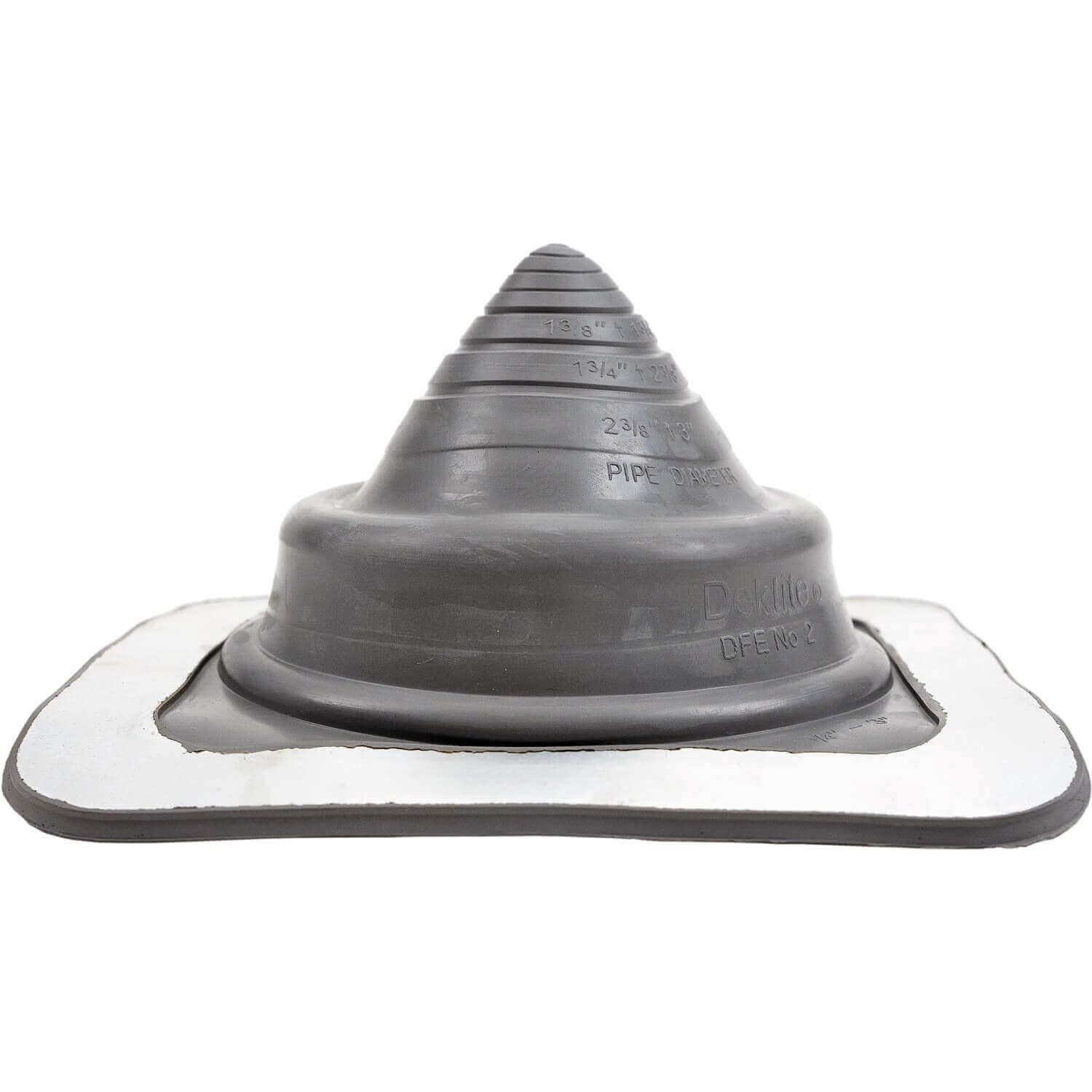

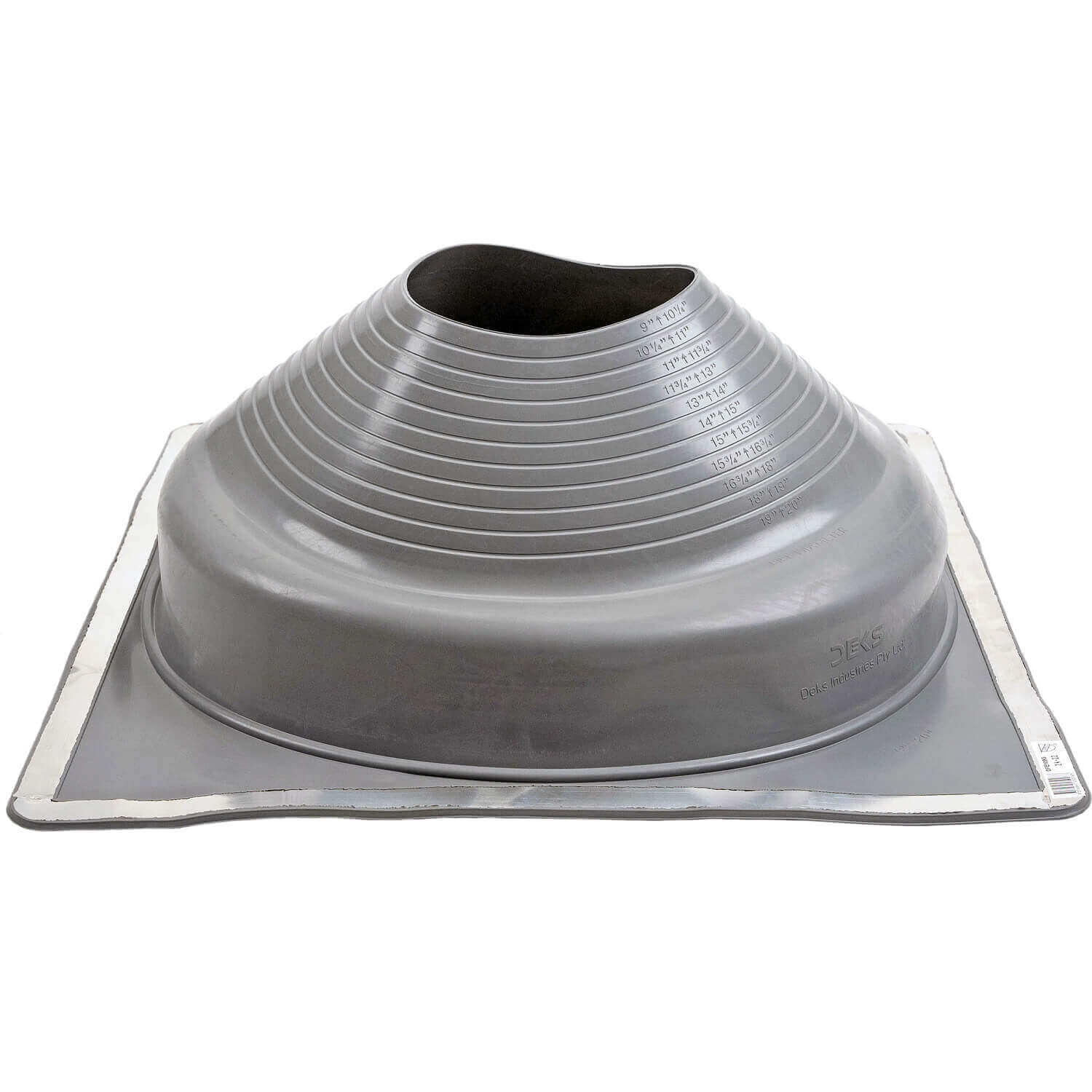

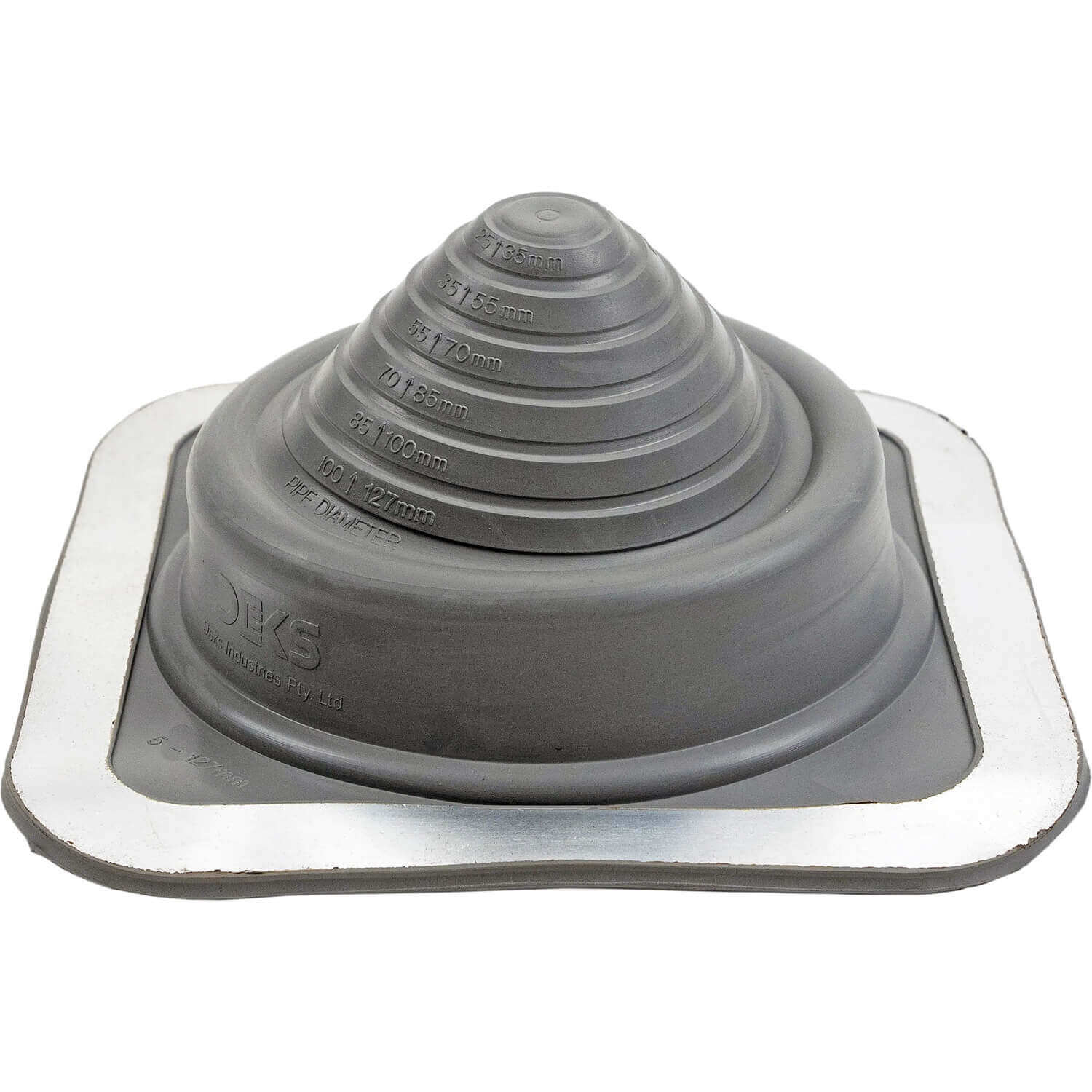

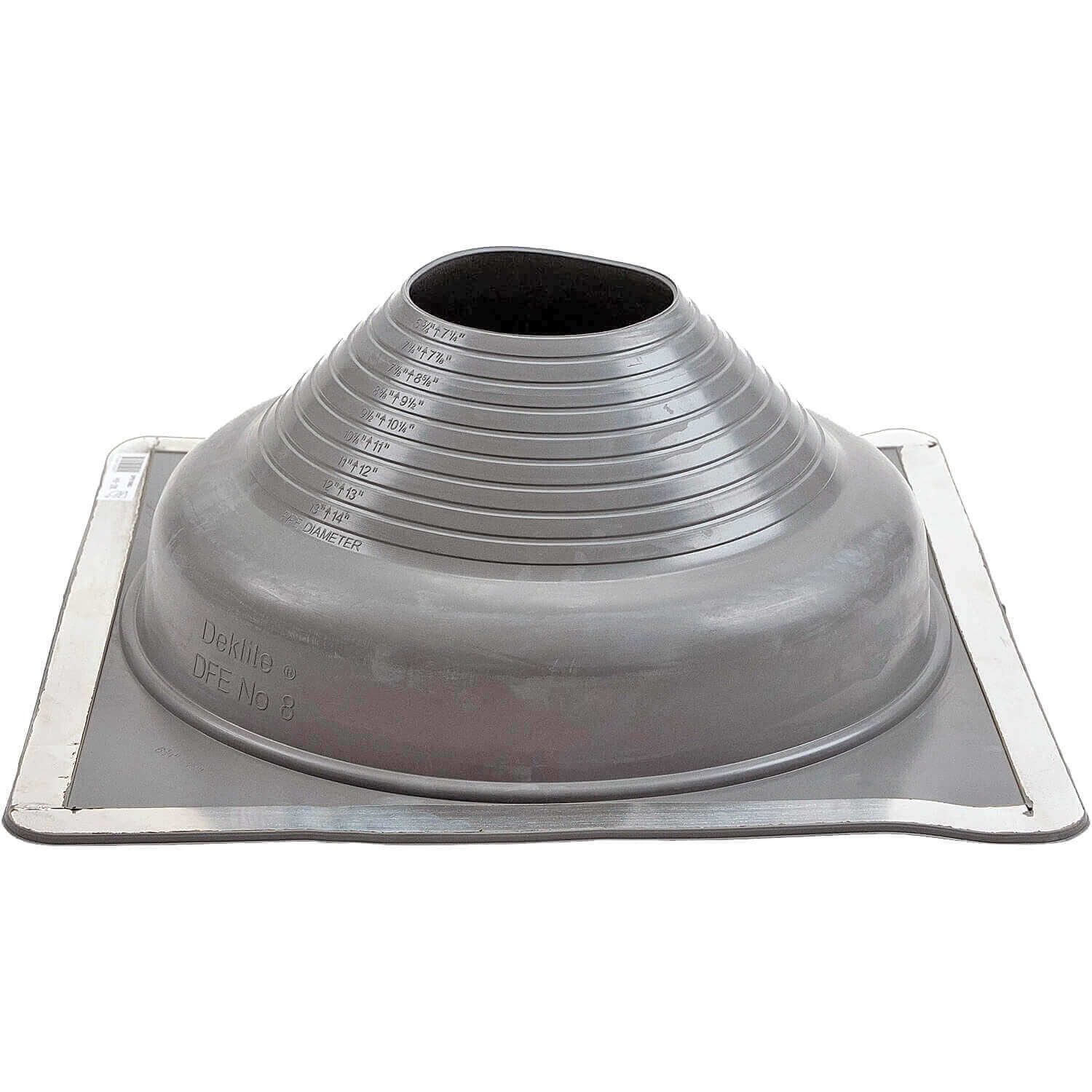

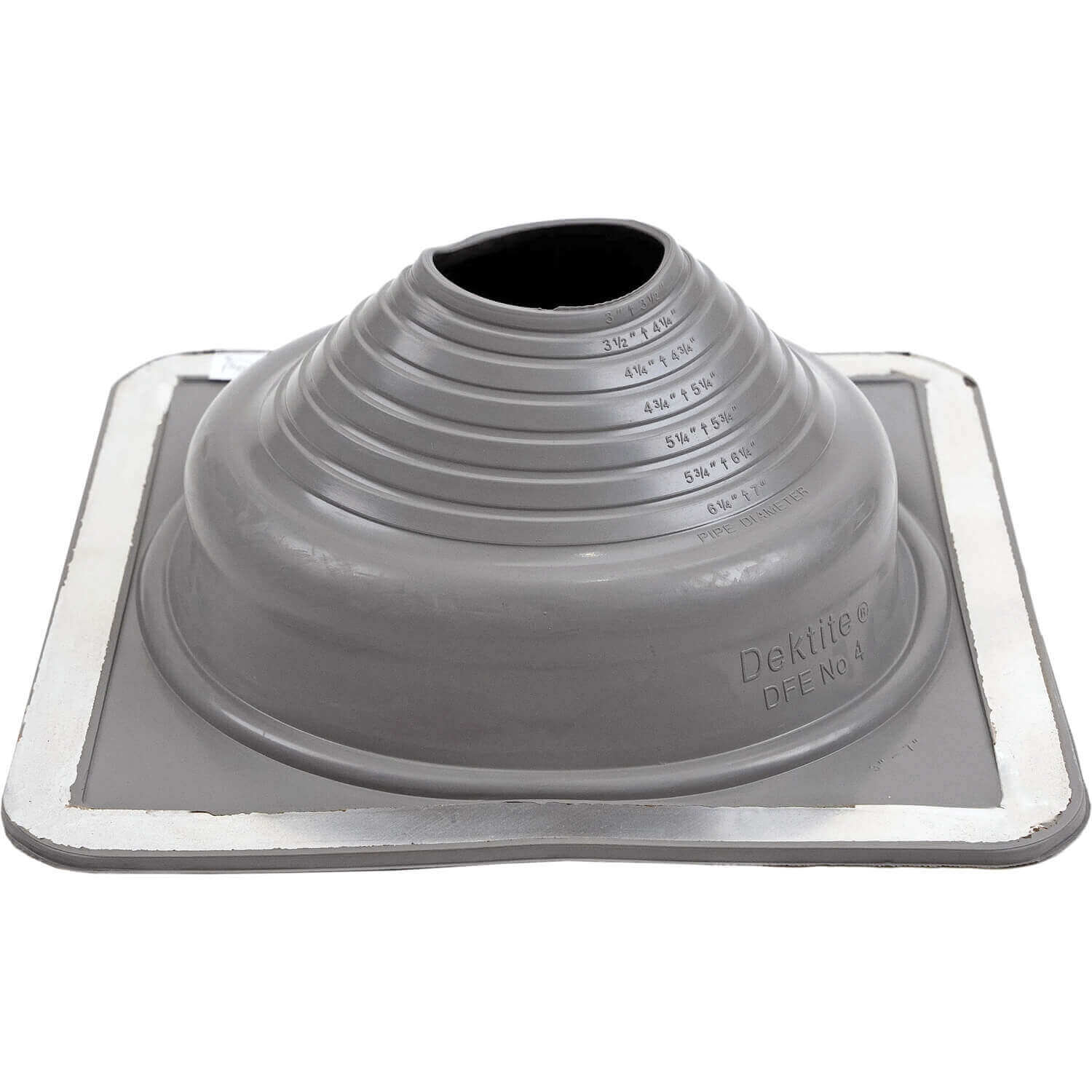

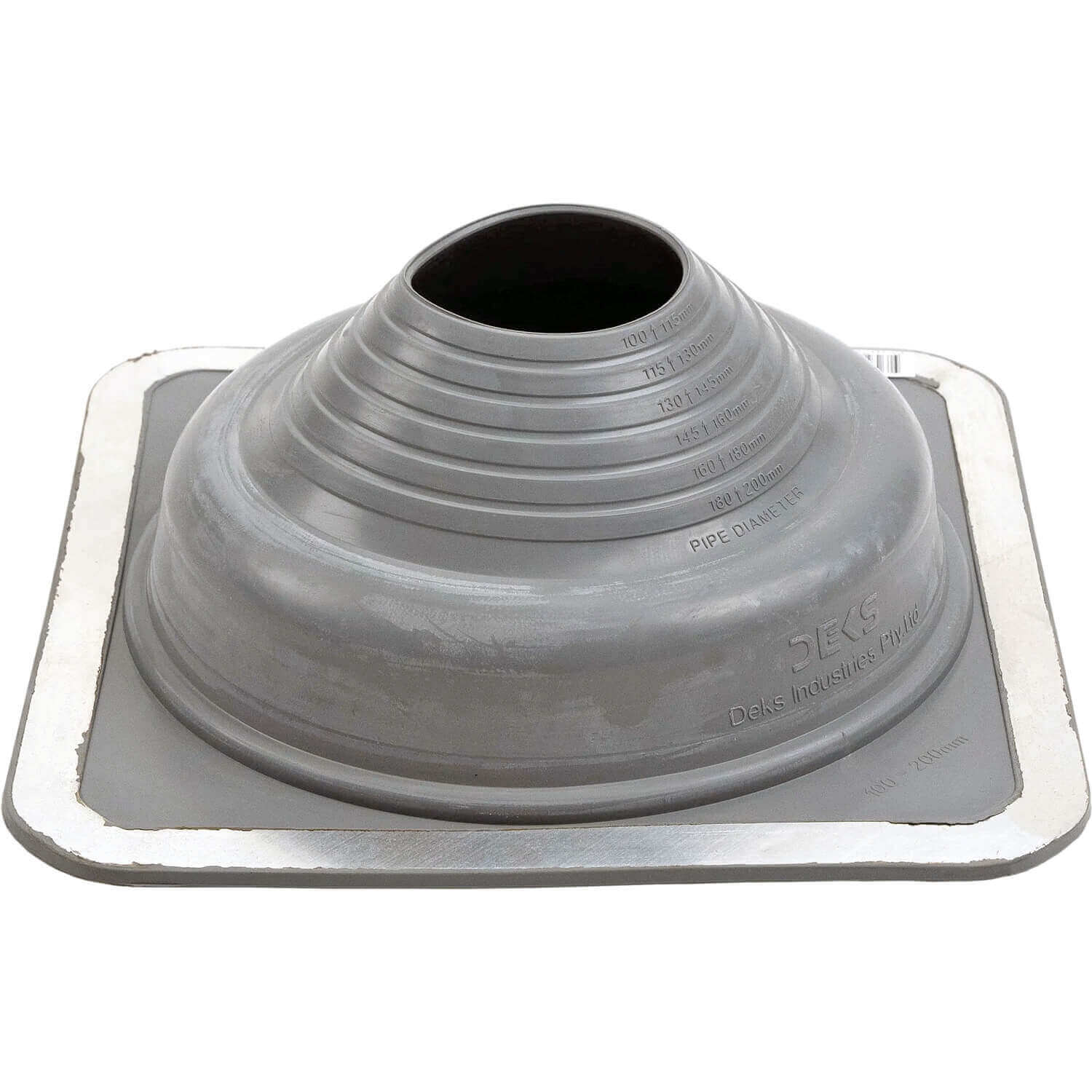

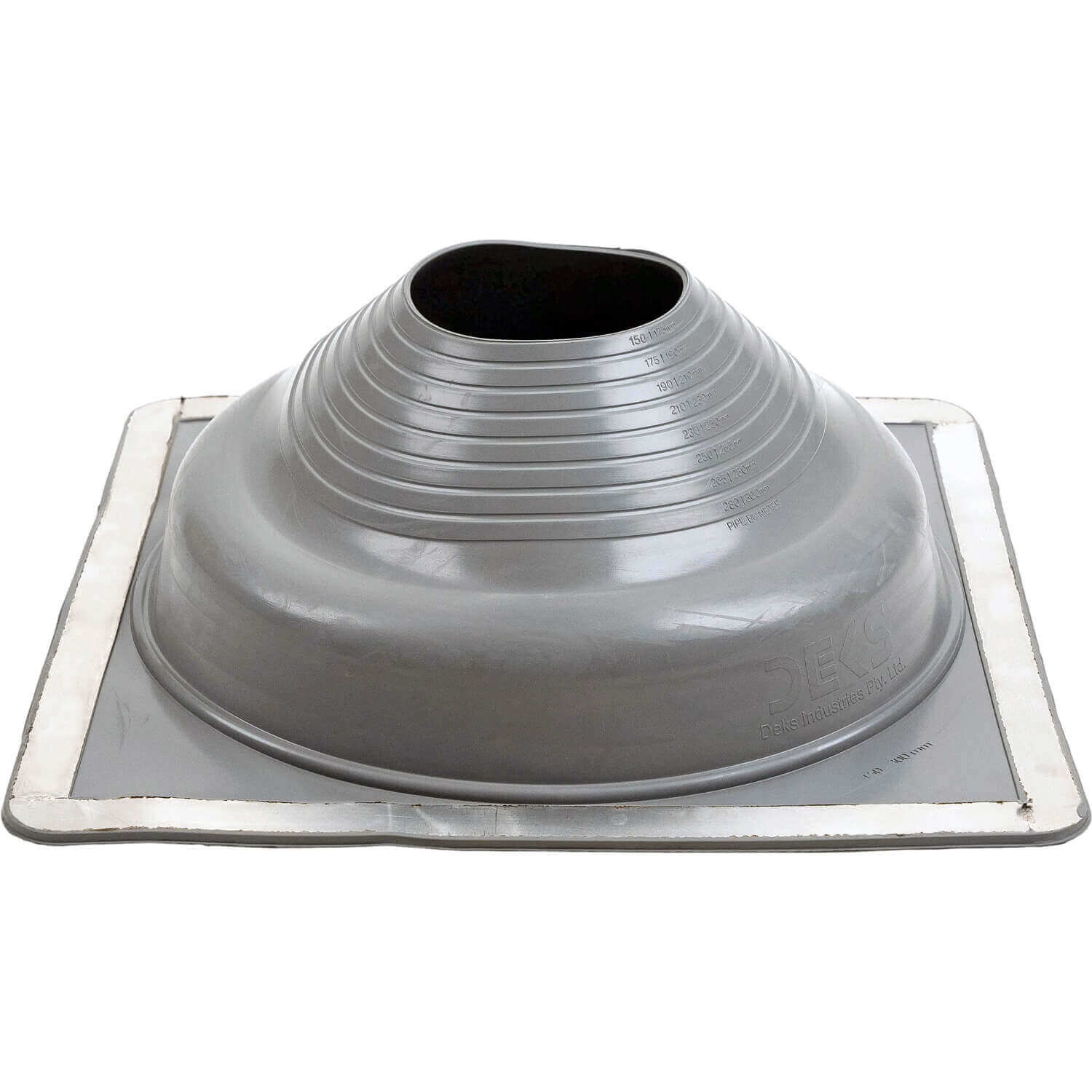

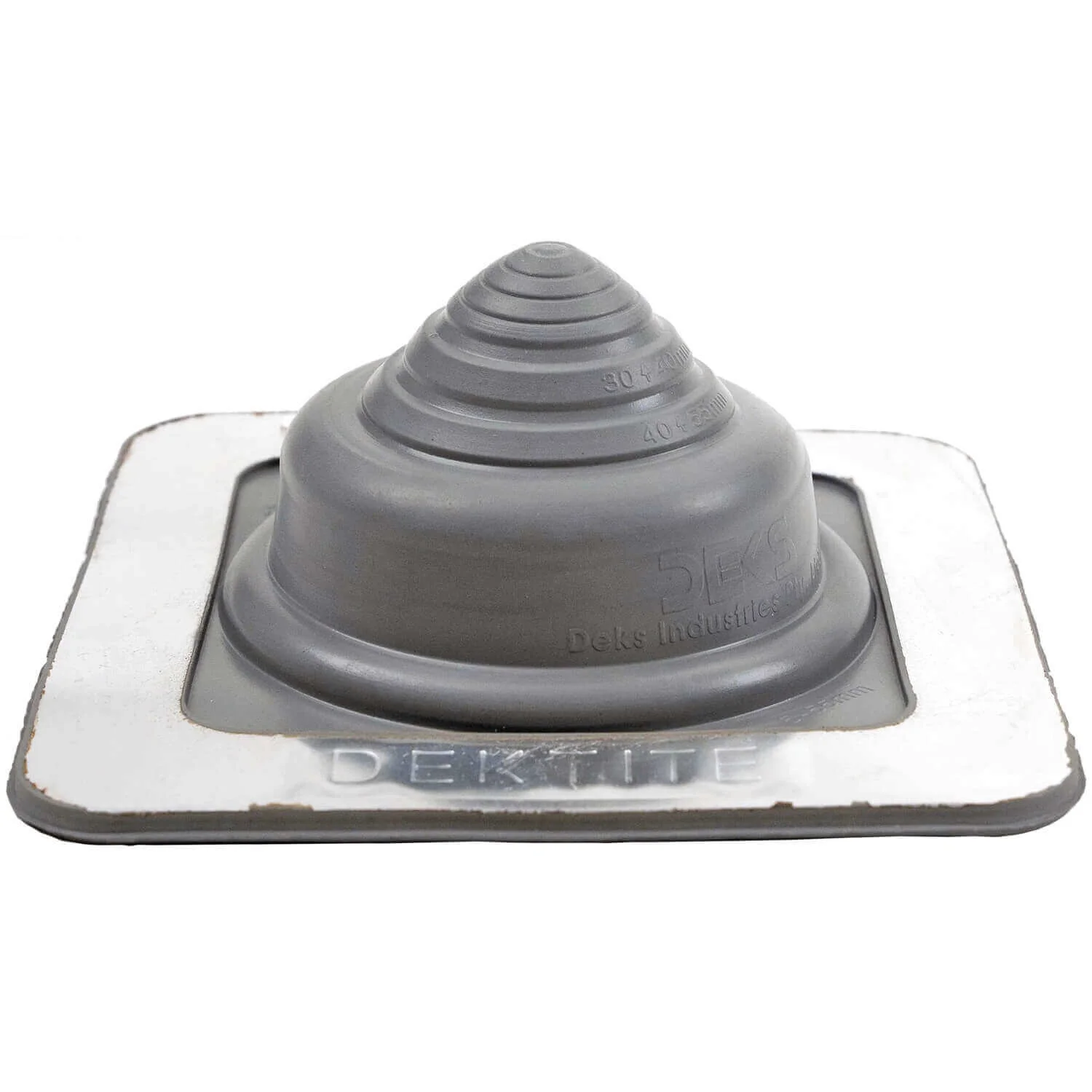

GRAY Square Base EPDM Flexible Pipe Flashing
GRAY Square Base EPDM Flexible Pipe Flashing
For Pipe Dimensions by Product Number See Chart Below.
✔Continuous Service Temperature Ranges of -58F to 239F (EPDM)
✔Easily Customize Pipe Boot Size on the Job Site With Shears or Heavy Scissors

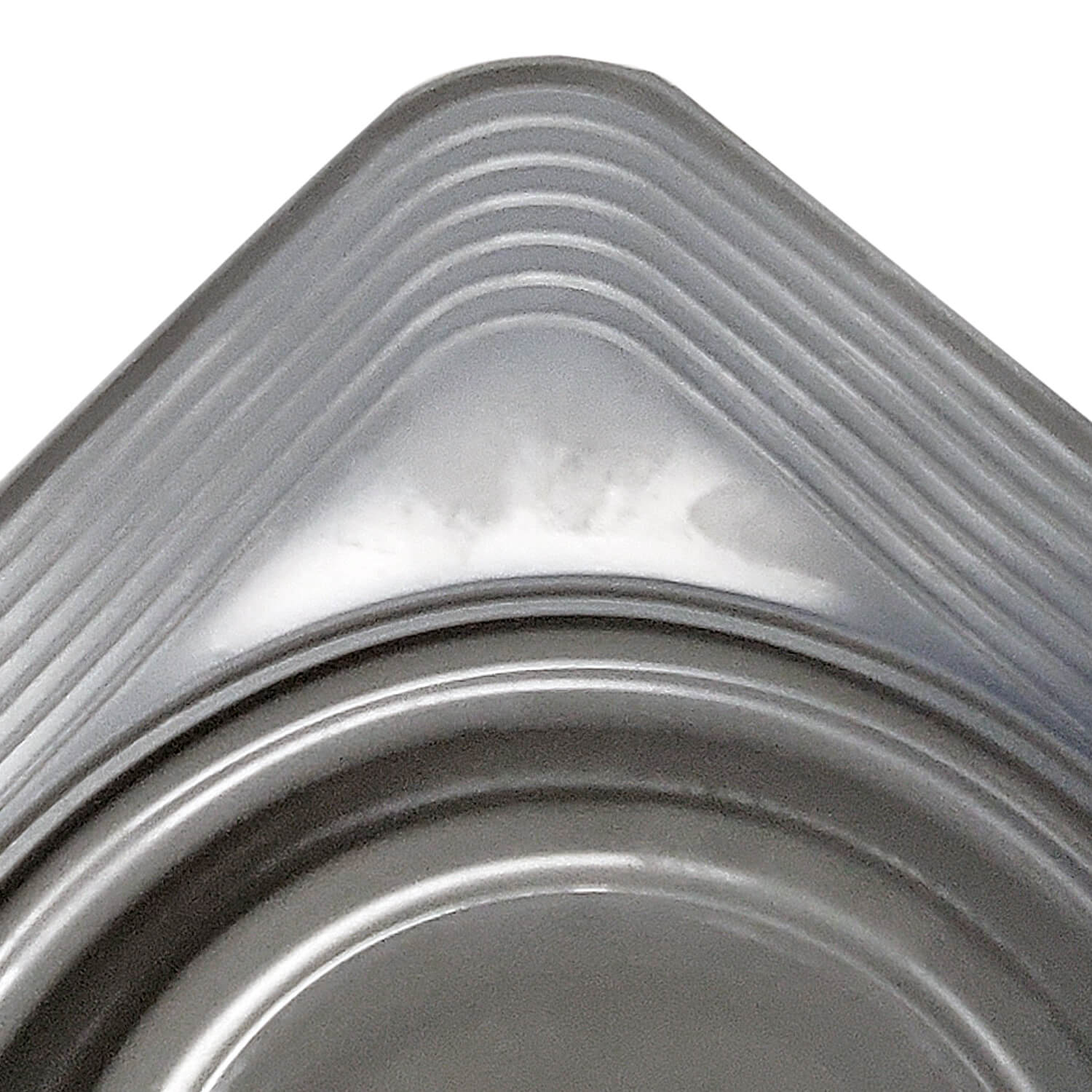

✔EPDM Rubber Boot with Flexible Base (Aluminum Collar) Seals Against Uneven Metal Roofing
✔Slide Flashing Down Pipe and Fasten Aluminum Collar To Roof With Metal Roofing Screws Every 1-1/2"
✔If Trimmed and Installed Correctly, Pipe Flashing Will Not Break or Crack
✔Reduces Building Maintenance Due To The Long Life of the Dektite Product
✔Use for Stove Pipes, Chimneys, Plumbing, Heating, Air Conditioning, Electrical, and Exhaust Vents
✔20 Year Manufacturer's Warranty Against Manufacturing Defects
Works with Metal Roof Pitches up to 12/12 (0 to 45 degrees)
On a Roof with a 10/12 to 12/12 Pitch (45 Degrees) Dektite Recommends You Use a Square Base Pipe Flashing Installed With The Base Tip Pointed Towards Roof Top. When Used With Deep Ribbed Profile Roofing Panels With 1-1/2" Deep Corrugation Or More, Consider Using Next Size Up That Will Accommodate The Same Diameter Pipe
CAUTION This product is not rated for temperatures experienced by prolonged contact with a single wall chimney. Manufacturers Recommended Temperature Ranges Are Clearly Stated Please Verify This Product Will Meet Specifications Of Your Installation Or Product Damage May Occur
For single wall chimney applications consider using a High Temperature Silicone Flashing product that is rated for high temperature applications
#10 x 1-1/2" Metal Roofing Screws 50 Count Available Here
Installation Instructions Available Here
| Product Number | Fits Pipe Outside Diameter | Base Size | Temperature Range | Flashing Materials |
|---|---|---|---|---|
| DFE101G | 1/4" TO 2-1/4" | 5-1/2" x 5-1/2" | -58F to 239F | EPDM |
| DFE102G | 1/4" to 3" | 7" x 7 | -58F to 239F | EPDM |
| DFE103G | 1/4" to 5" | 8-3/4" x 8-3/4" | -58F to 239F | EPDM |
| DFE104G | 3" to 7" | 11" x 11" | -58F to 239F | EPDM |
| DFE105G | 4" to 8" | 12-1/4" x 12-1/4" | -58F to 239F | EPDM |
| DFE106G | 5" to 9" | 14-1/4" x 14-1/4" | -58F to 239F | EPDM |
| DFE107G | 6" to 12" | 18" x 18" | -58F to 239F | EPDM |
| DFE108G | 6-3/4" to 14" | 19-1/2" x 19-1/2" | -58F to 239F | EPDM |
| DFE109G | 9" to 20" | 26-3/4" x 26-3/4" | -58F to 239F | EPDM |
